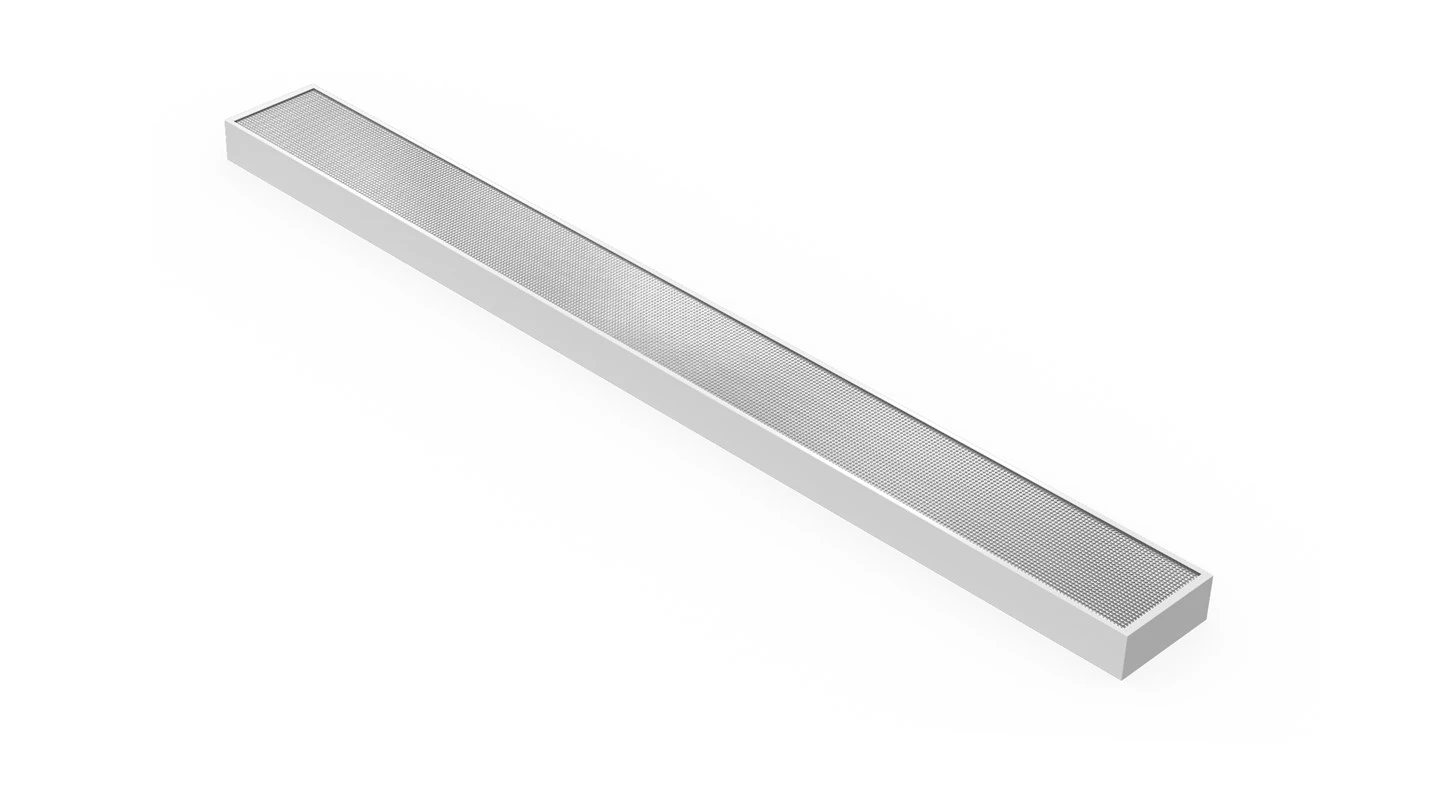

Svietidlo Brighton UGR Batten Light

Brighton UGR Batten Light

Brighton-Batten2

Brighton-Batten3

Brighton-Batten4

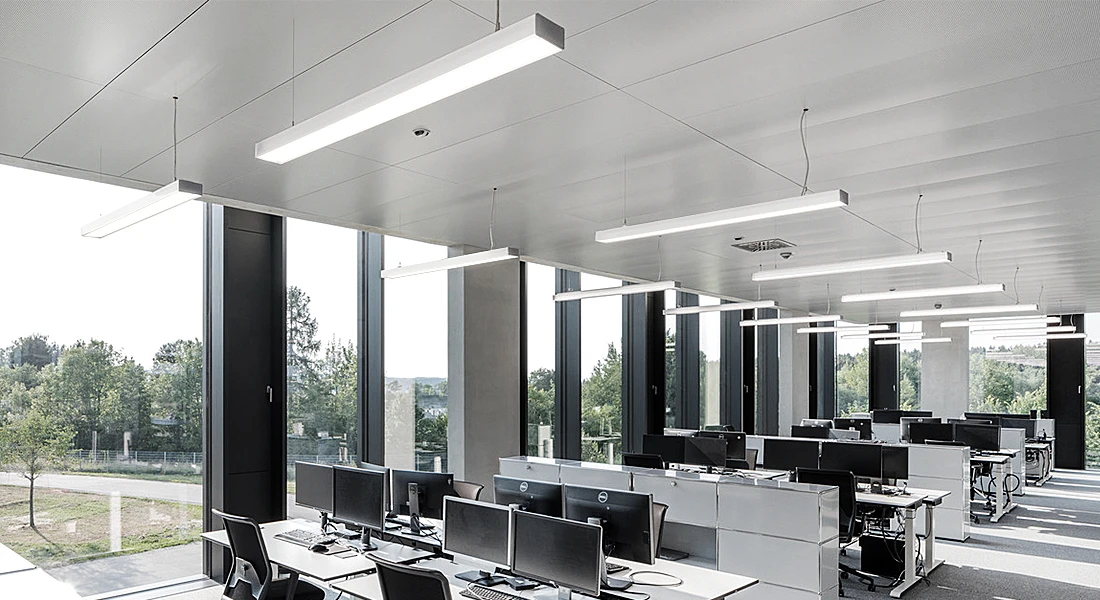

Brighton-Batten5

Popis:

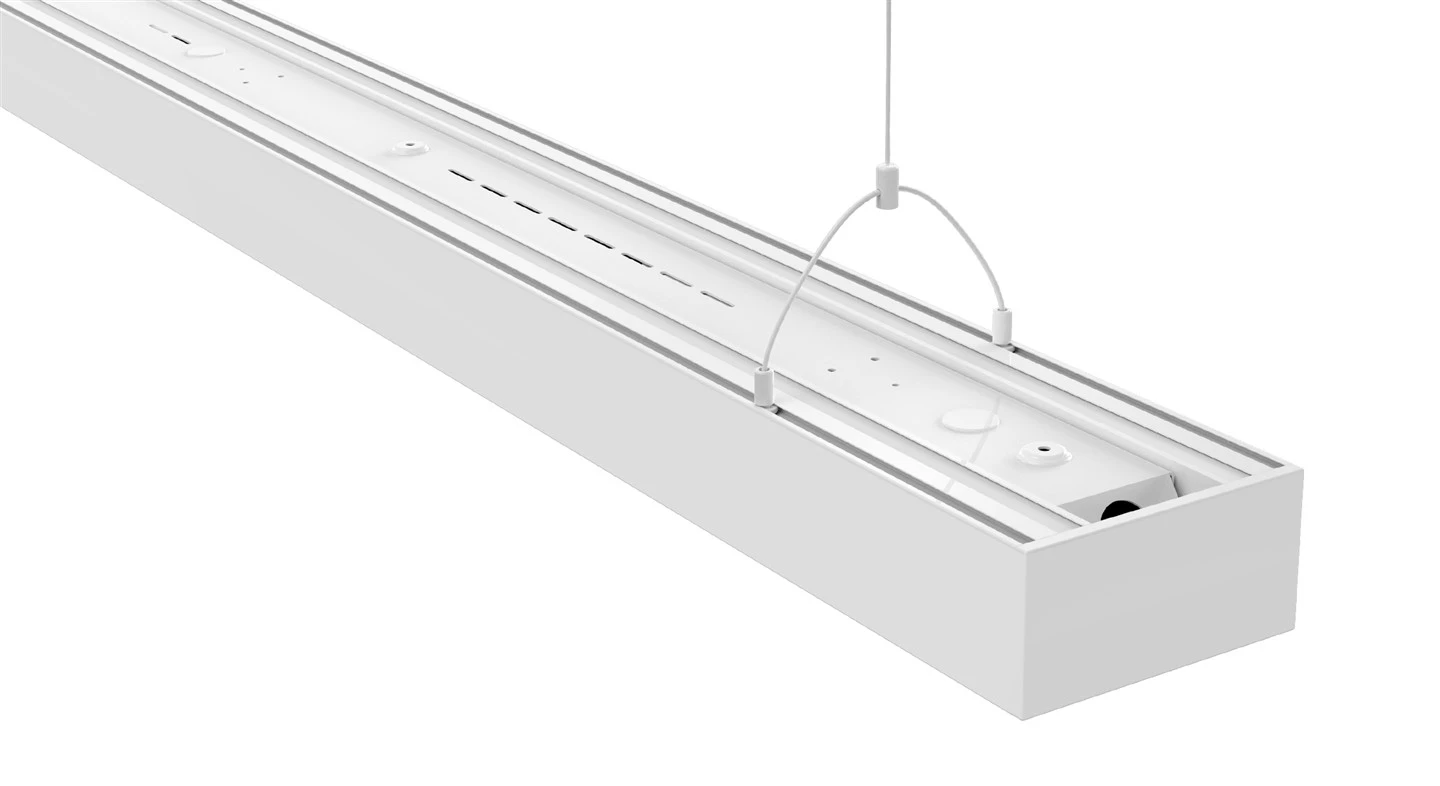

Lištové svietidlá Brighton sú najnovším dizajnom, ktorý nielenže spĺňa optické UGR<19, but also use more costive design solution. Brighton battens lamp use the prismatic diffuser the optical material, and also use high-power LED and secondary lens as the light source. Brighton batten uses a back towed junction box for drivers and components installation,and also, the junction box acts as a installation box for the lighting unit. The Junction box can withstand up to four times weight of the lighting unit, which not only provides effective quality insurance, but also makes the product easy for installation.

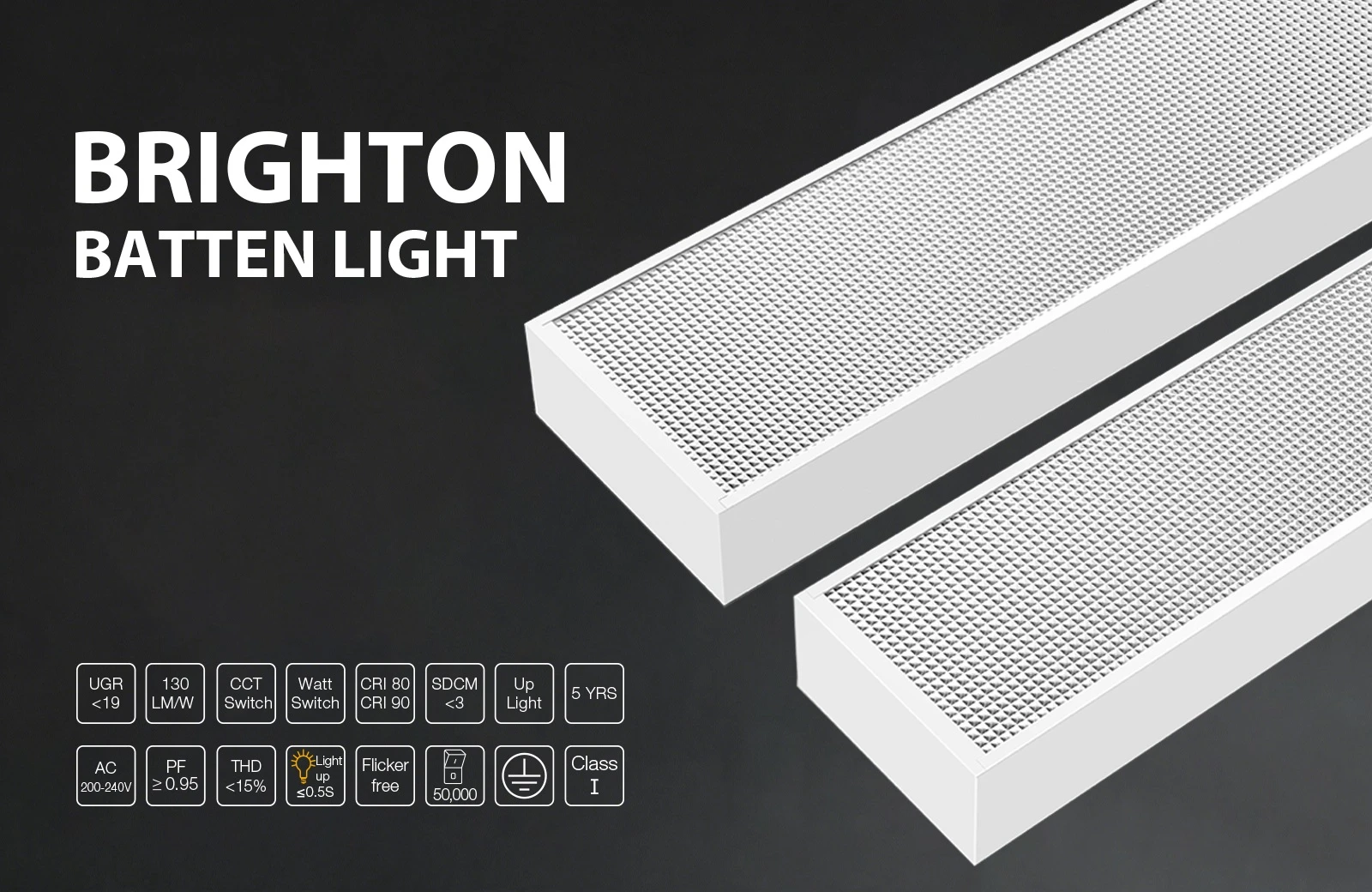

Vlastnosti:

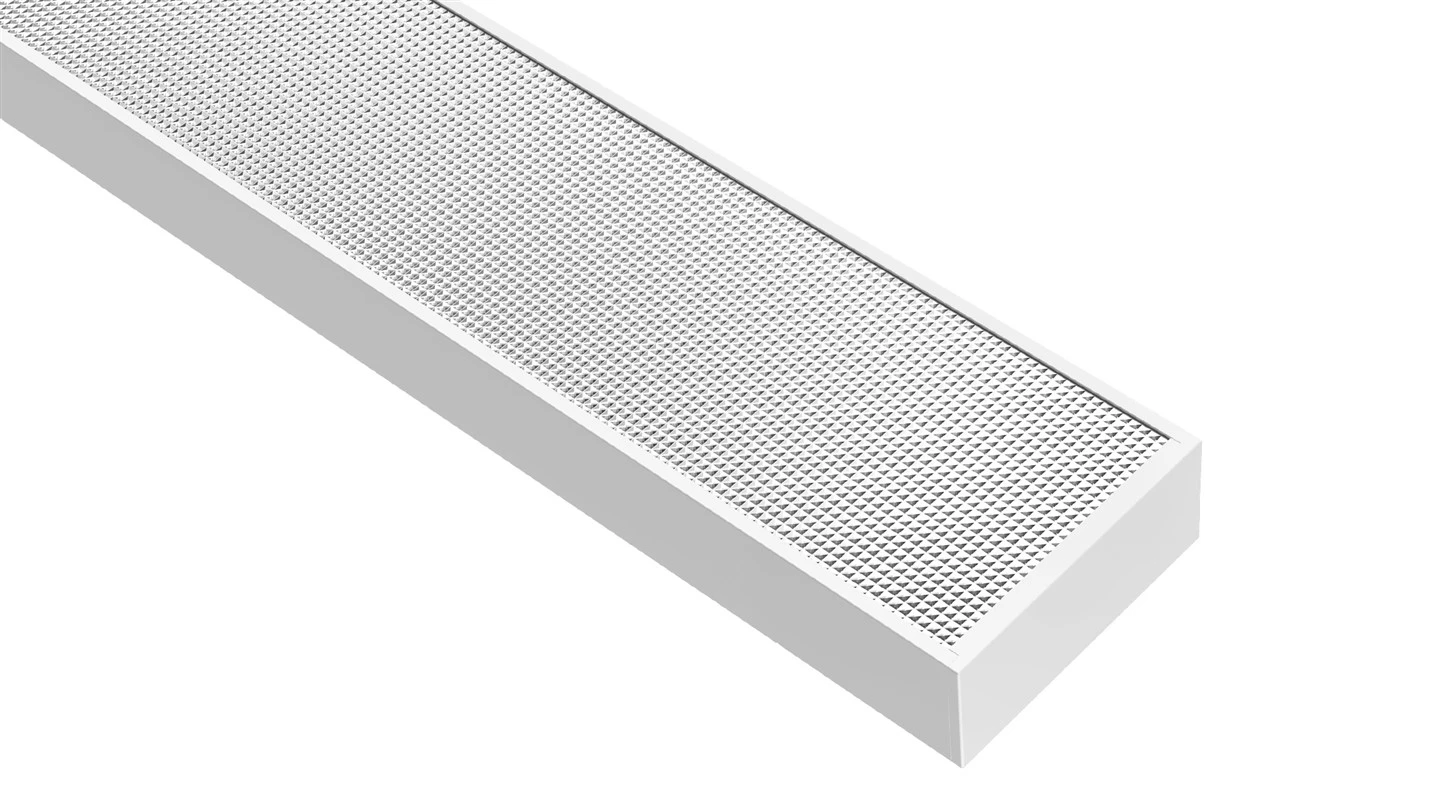

>UGR<19 with prismatic diffuser

>Spínač napájania a CCT na ovládači LED

>120 mm|K dispozícii sú šírky 150 mm

>Ra80 alebo Ra90, SDCM<3

>UP svetlo @ konštantný 2X4W ako voliteľné príslušenstvo

>Koncová alebo zadná besa pre káblový vstup

>Rôzne rôzne funkcie ako možnosti

>K dispozícii je rozmer 4ft / 5ft / 6ft

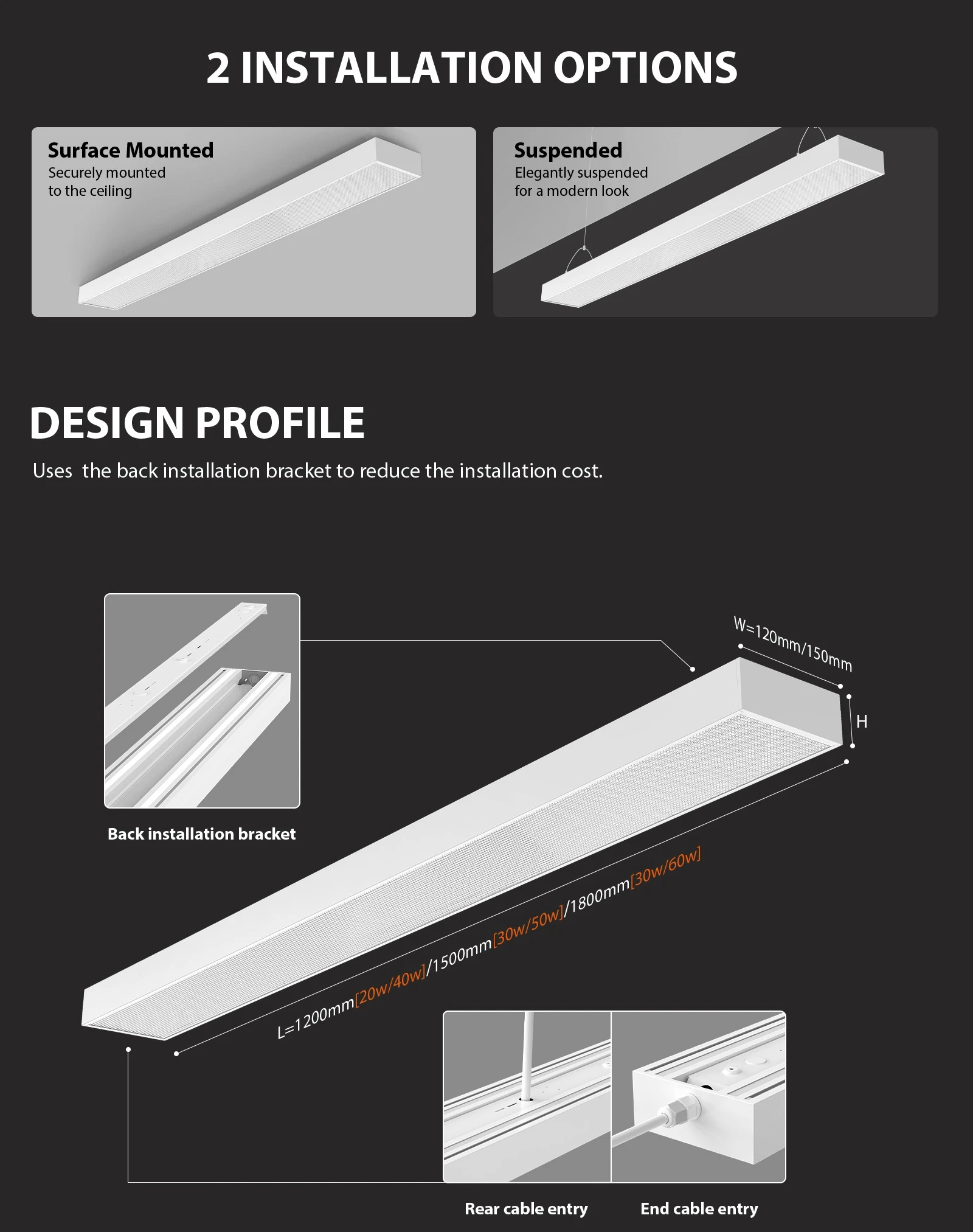

>Zapustená / Povrchová montáž / Závesná inštalácia

>5 rokov záruka

Send Inquiry

Download

Description

Technical Parameters

ÚVOD:

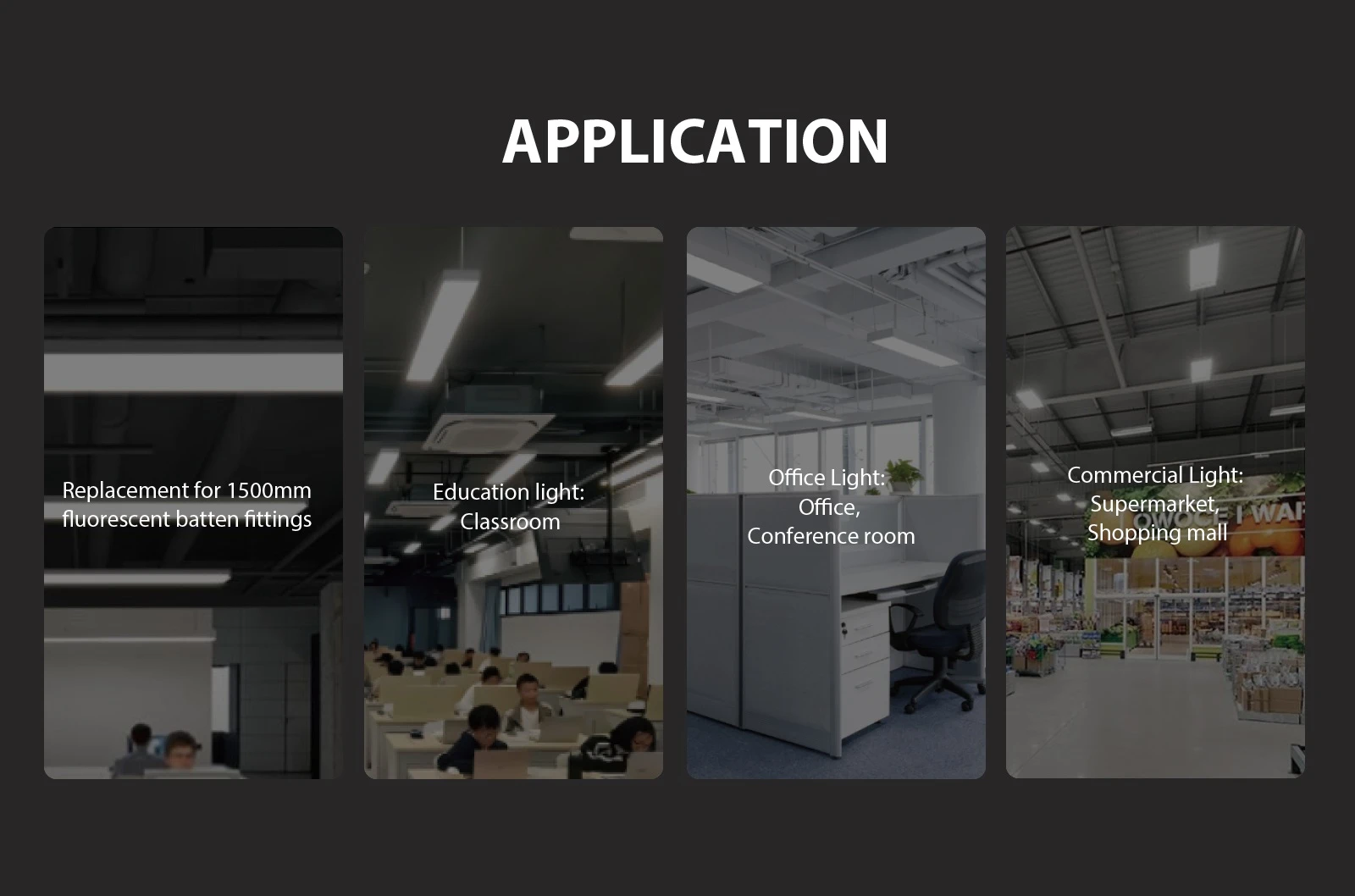

LED osvetlenie Brighton Batten ponúka na želanie 120 mm, 150 mm šírky, UGR<19, and wattage and CCT switches as standard features of strip lights. Brighton battens led light are widely used by customers in office, commercial, education, and other applications.

VLASTNÍCTVO:

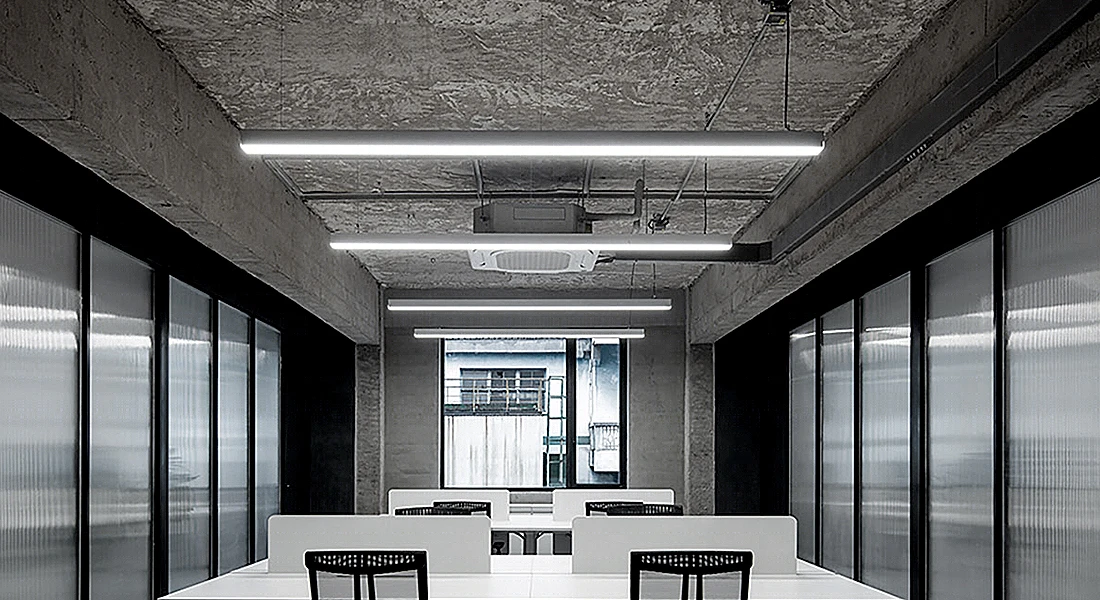

Brighton UGR Batten 150mm je naše najnovšie svietidlo na lišty, navrhnuté pre vynikajúci výkon a flexibilitu. So šírkou 150 mm sa toto svetlo bez problémov integruje do akéhokoľvek priestoru a má nízke oslnenie (UGR)<19. Its advanced LED driver features a power and CCT switch, allowing you to customize brightness and warmth to suit your needs. Our LED strip lights are perfect for a variety of applications, from office/commercial/industrial to campuses, blending technology with stylish design.

Objednávkový kód	šírka	Menovitý výkon	LM/W	Lumen	SDCM/Ra	Watt/CCT Prepínač	Rozmer produktu	GW/CTN	MNOŽSTVO/CTN
BT500-04W-DT1-40F01	120 mm	20W/40W	typ.130	typ.2600/5200	<3 / Ra80/90	Y	D1200xŠ120xV60	8,84 kg	4ks
BT500-05W-DT1-50F01	120 mm	30/50W	typ.130	typ.3900/6500	<3 / Ra80/90	Y	D1500xŠ120xV60	11,12 kg	4ks
BT500-06W-DT1-60F01	120 mm	30/60W	typ.130	typ.3900/7800	<3 / Ra80/90	Y	D1800xŠ120xV60	14,52 kg	4ks
BT510-04W-DT1-40F01	150 mm	20/40W	typ.130	typ.2600/5200	<3 / Ra80/90	Y	D1200xŠ150xV60	11,12 kg	4ks
BT510-05W-DT1-50F01	150 mm	25/50W	typ.130	typ.3900/6500	<3 / Ra80/90	Y	D1500xŠ150xV60	13,40 kg	4ks
BT510-06W-DT1-60F01	150 mm	30/60W	typ.130	typ.3900/7800	<3 / Ra80/90	Y	D1800xŠ150xV60	16,80 kg	4ks
